STORM CHANNEL details ...

STORM Channel (proposed next to box culvert containing New Mercer irrigation waters)

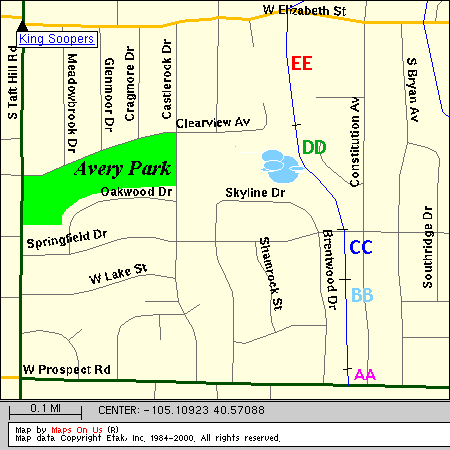

5 Cross-Sections of Storm Channel (enlarge MAP to the left)


Section AA (just north of Prospect Rd) - enlarge map
Style = open channel with concrete sides (east 5', west 6'); soil bottom sloped (1:3 L, 1:4.5 r)
next to the following addresses: 1513 thru-1509 Constitution; 1516-to1512 Brentwood Drive


Section BB (aprox 100' north of Prospect Rd)
Style = open channel with concrete sides (east 5', west 5'); soil bottom sloped (1:3 L, 1:4.5 r)
next to the following addresses: 1505 thru-1317 Constitution; 1508 thru 1408 Brentwood


Section CC (just south of Springfield)
Style = open channel with concrete sides (east 5.7', west 4.6'); soil flat bottom
next to the following addresses: 1313 to-1301 Constitution; 1404 to- 1300 Brentwood


Section DD (just north of Springfield to northern boundary of Avery Park)
Style = open channel with concrete sides (6' east, 6' west); soil flat bottom
next to the following addresses: 1241 -1237 Constitution; 1601 -1629 Lakeridge; 1100 thru-1108 Brentwood Drive


Section EE (just south of Elizabeth - [start of Storm Channel])
Style = open channel with sloped (1:3) soil sides (east 5', west 6'); east bank lower than west bank
next to the following addresses: 1633 Lakeridge; 1617-20 Leesdale Ct; the Woodbox Condos; 1700 Clearview; 1004 thru 1012 Clearview Ct.; & Westminster Church


Note: All trees within the NMD right of way will be casualties of the project

Get a Cross-Section faxed to YOU

Cross-Section AA; BB; CC; DD; or EE (enlarge map and find your address above) can be faxed to you. Simply email your street address and Cross-Section you would like, plus your FAX #.
